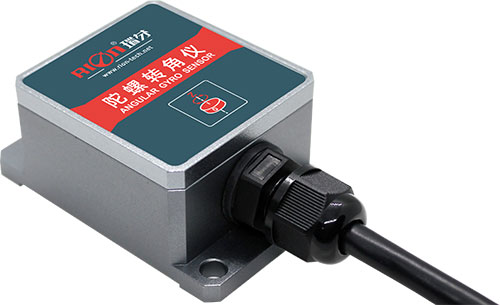

azimuth angle output
strong vibration resistance
light weight
long life,strong stability
cost-effective
all solid state
compact & light design
can2.0a/can2.0b output optional
dc9~36v power supply
product description
scope of application
parameter

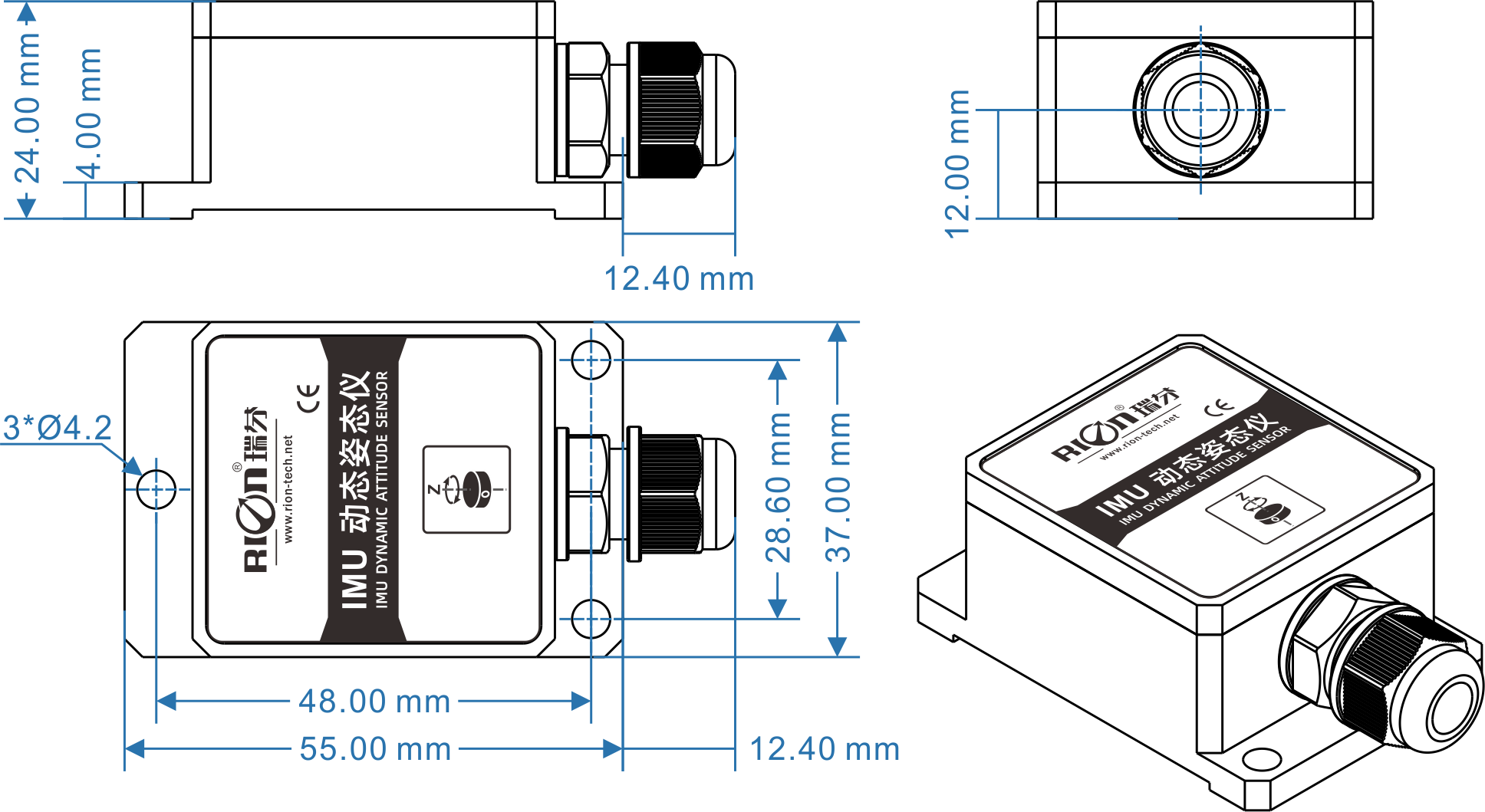

dimensions
download
| tl720d-c2/c3 | parameters | |
| heading measure axis | z axis heading angle（±180）° | |
| bandwidth | >100hz | |
| resolution | 0.01° | |
| heading accuracy | <0.1°/m | |
| position accuracy | <2mm/m (according to the angle conversion) | |
| nonlinear | 0.1% of fs | |
| pitch measurement range | ±90° | |
| pitch measurement accuracy | 0.25°（1σ） | |
| roll measurement range | ±180° | |
| roll measurement accuracy | 0.25°（1σ） | |
| accelerometer | accelerometer range | ±4g |
| acceleration resolution | 0.001g | |
| acceleration accuracy | 5mg | |
| bias instability (allan) | 0.05mg | |
| speed random walk coefficient (allan) | 0.015m/s/sqrt(h) | |
| bias stability (10s average) | 0.15mg | |
| gyro | max gyro range | ±250°/s |
| bias instability (allan) | 5.0°/h | |
| angle random walk coefficient (allan) | 0.30°/sqrt(h) | |
| bias stability(10s average value) | 10°/h | |
| startup time | 200ms | |
| input voltage | 9~36vdc / 5vdc(optional) | |
| working current | 30ma(12v) | |
| working temp | -40℃ ~ 80℃ | |
| storage temp | -40℃ ~ 85℃ | |
| vibration | 5g~10g | |
| impact | 200g pk，2ms，½sine | |
| working life | 10 years | |
| outputrate | 1hz~100hz can set | |
| output signal | can2.0a / can2.0b(optional) | |
| mtbf | ≥50000hours/times | |
| insulation resistance | ≥100 mω | |
| shockproof | 100g@11ms、3 axial direction (half sinusoid) | |
| anti-vibration | 10grms、10～1000hz | |
| protection grade | ip67 | |
| weight | ≤135g (including 1 meter standard cable) | |
l33×w27×h9.5mm
l28.5×22.6×2mm
4 m3 screws
* please contact the online sales engineer to obtain the product specification of rion, or email sales@rion-tech.net to obtain it.
