high performance drift stability
low noise
light weight
long life,strong stability
cost-effective
excellent vibration performance

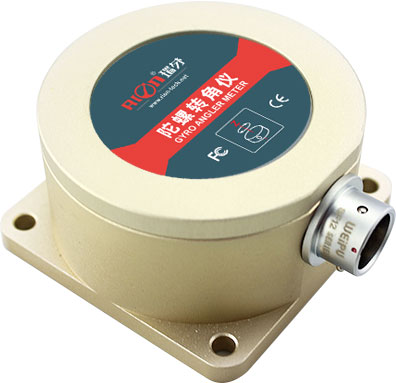

product description
scope of application
parameter
dimensions
download
| tl618d | parameters | ||
| measurie range | ±50°/s | ±150°/s | ±300°/s |
| measureaxis | x、y、z（optional） | x、y、z（optional） | x、y、z（optional） |
| bandwidth | >2000hz | >2000hz | >2000hz |
| resolution | 0.1°/s | 0.1°/s | 0.1°/s |
| nonlinear | 0.1% of fs | 0.1% of fs | 0.1% of fs |
| temperature drift | < ±0.1°/sec,/℃ | < ±0.1°/sec,/℃ | < ±0.1°/sec,/℃ |
| start time | 5ms | 5ms | 5ms |
| input voltage | 9～36v | 9～36v | 9～36v |
| output current | 4-20ma | 4-20ma | 4-20ma |
| current | 6ma | 6ma | 6ma |
| working temperature | -40℃ ~ 85℃ | -40℃~ 85℃ | -40℃~ 85℃ |
| store temperature | -40℃~ 85℃ | -40℃~ 85℃ | -40℃~ 85℃ |
| capacitive load | 1000pf | 1000pf | 1000pf |
| shock | 5g~10g | 5g~10g | 5g~10g |
| impact | 200g pk，2ms，½sine | ||
| time drift | 20°/h | ||
| working life | 11 years | ||
| electromagnetic compatibility | according to en61000 and gbt17626 | ||
| mtbf | ≥50000hours/times | ||
| insulation resistance | ≥100m | ||
| shockproof | 100g@11ms、3 axial direction (half sinusoid) | ||
| anti-vibration | 10grms、10～1000hz | ||
| protection class | ip67 | ||
| connector | 5 pins air-plug, matched with 1m cable | ||
| weight | 110g(without cable) | ||

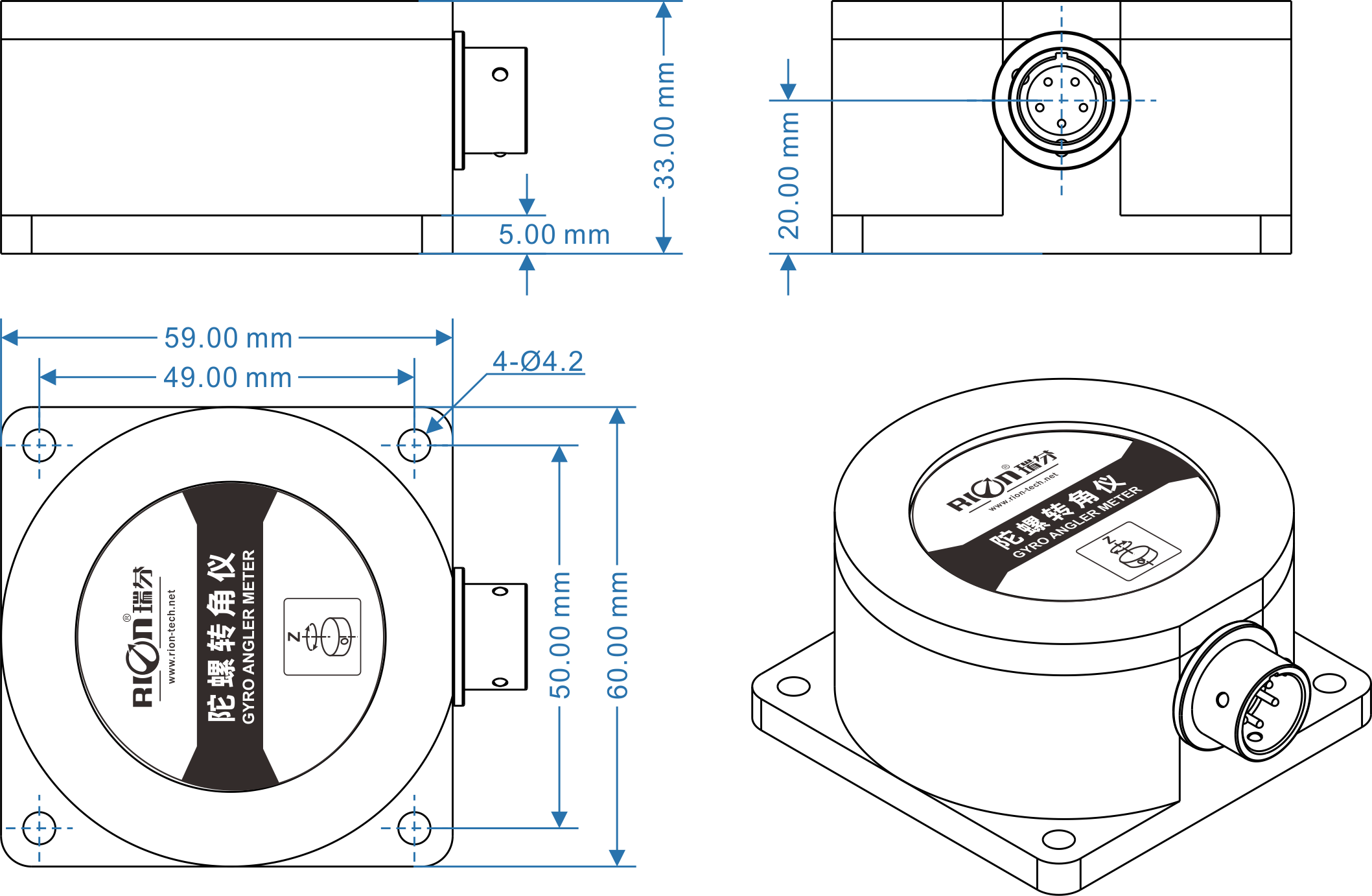

l60×w59×h33mm
l50×49×5mm
4 m4 screws
* please contact the online sales engineer to obtain the product specification of rion, or email sales@rion-tech.net to obtain it.
