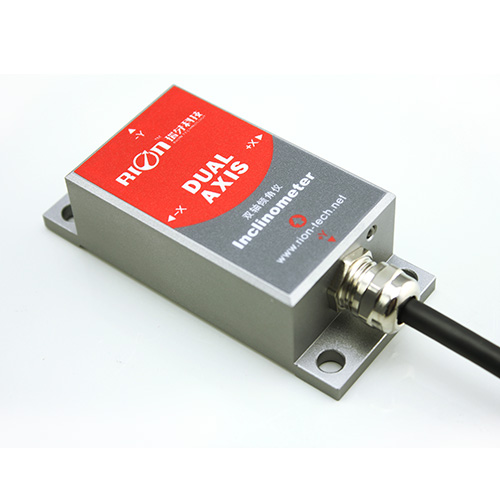

single/double axis inclination measurement
rs232 series output
switch output（high-low level)
resolution : 0.01°
wide temperature working: -40～ 85℃
ip67 protection class
product description
scope of application
parameter
dimensions
download
| sca141 / sca142 | conditions | parameters | unit |
| measure rang |
| ±15 | ° |
| measure axis |
| x y | axis |
| resolution |
| 0.01 | ° |
| measure accuracy |
| 0.05 | ° |
| long term stability |
| 0.05 | ° |
| zero temp. coefficient | -40～85℃ | ±0.006 | °/℃ |
| sensitivity temp. coefficient | -40～85℃ | ≤100 | ppm/℃ |
| power on time |
| 0.1 | s |
| response time |
| 0.2 | s |
| emc | according to en61000 and gbt17626 | ||
| mtbf | ≥50000 hours/times | ||
| insulation resistance | ≥100m | ||
| shockproof | 100g @ 11ms,3 axial direction (half sinusoid) | ||
| anti-vibration | 10grms、10～1000hz | ||
| protection glass | ip67 | ||
| cables | standard 1m length/wearproof/grease proofing/wide temp./shielded cables 4*0.4mm2 | ||
| weight | ≤220g(without cable) | ||

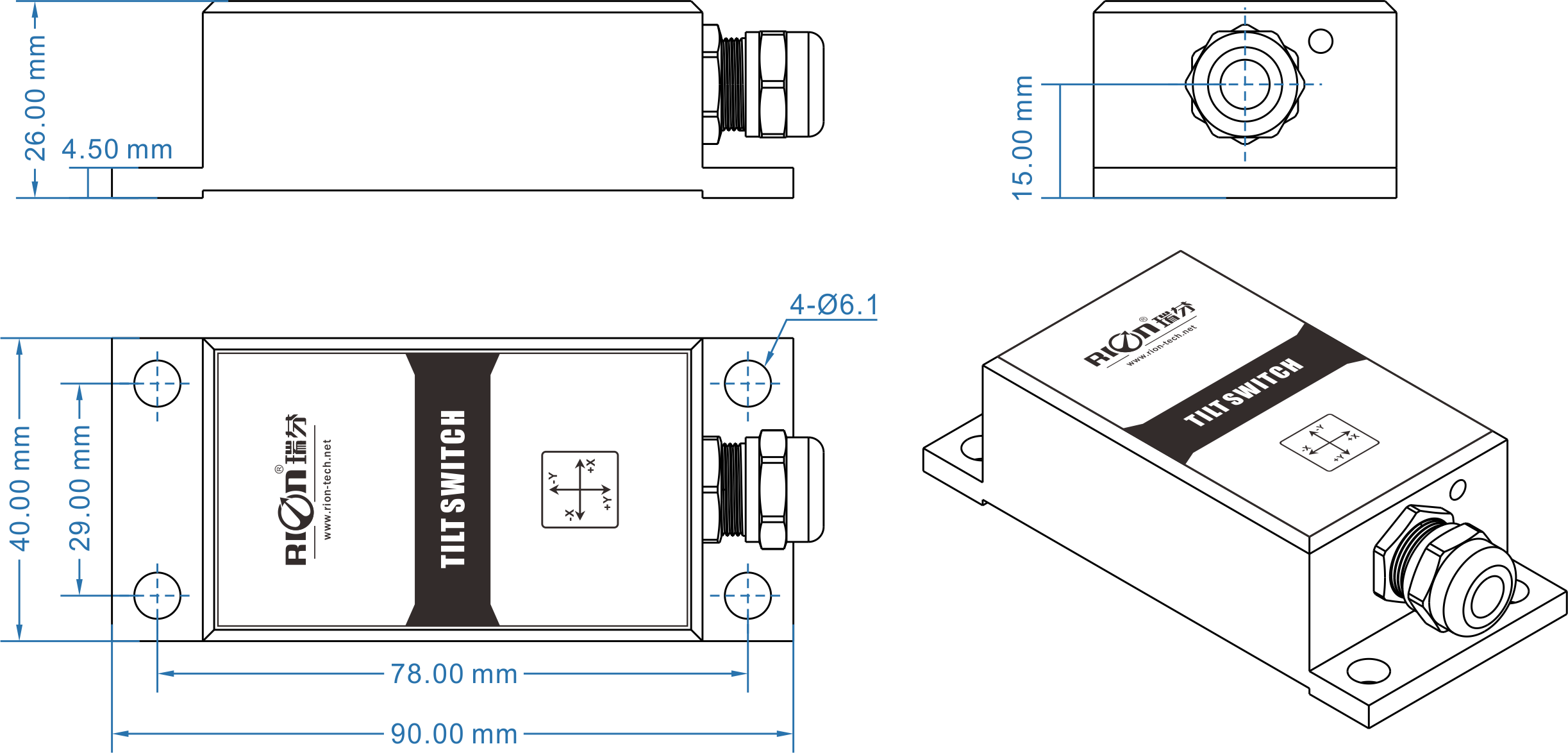

l90×w40×h26mm
l78×w29×h4.5mm
4 m6 screws
* please contact the online sales engineer to obtain the product specification of rion, or email sales@rion-tech.net to obtain it.
