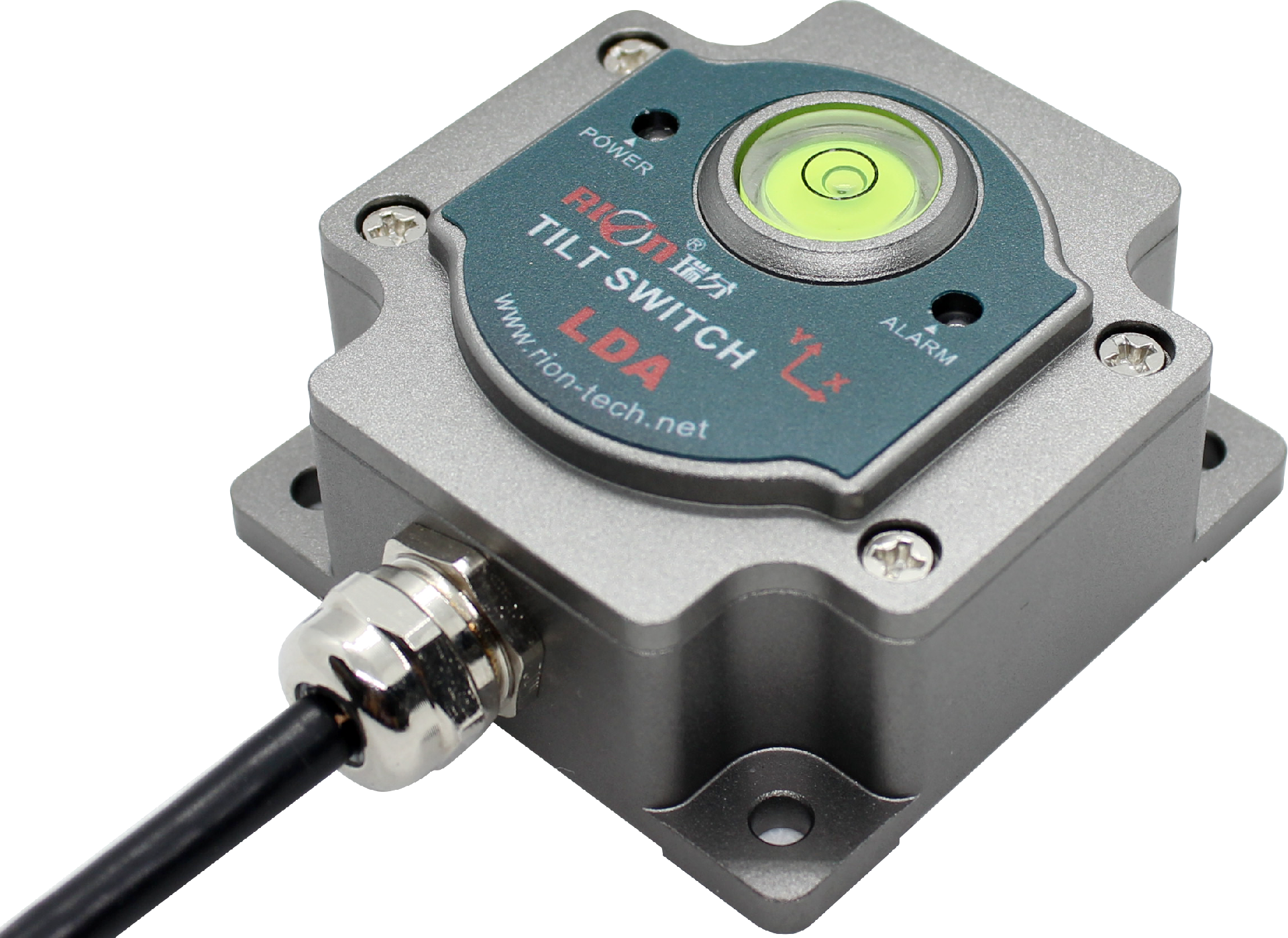

single/dual axis
accuracy: 0.1°
rs232 set alarm angle
switch/replay output
resolution: 0.01°
positive/negative output
product description
scope of application
parameter
dimensions
download
| lca341 / lca342 | conditions | parameter | unit |
| measure range |
| ±15 | ° |
| measure axis |
| x/x y | axis |
| resolution |
| 0.05 | ° |
| measure accuracy |
| 0.1 | ° |
| long-term stability |
| 0.05 | ° |
| zero temp. coeffiecient | -40～85℃ | ±0.006 | °/℃ |
| temp. sensitivity coefficient | -40～85℃ | ≤100 | ppm/℃ |
| power on time | 0.1 | s | |
| response time | 0.2 | s | |
| electromagnetic compatibility | according to en61000 and gbt17626 | ||
| mtbf | ≥50000hours/times | ||
| insulation resistance | ≥100mω | ||
| impact resistance | 100g@11ms、3 axial direction (half sinusoid) | ||
| anti-shock | 10grms、10～1000hz | ||
| protection grade | direct lead ip67; aviation plug ip65 | ||
| cables | 1m, durable, grease proof, wide temperature, shield cable, 4*0.4 mm2 | ||
| weight | 140g(without cable) | ||
l76×w60×h36mm
l48×w48×h6mm
4 m4 screws
