azimuth accuracy: 0.5 °
rolling angle measurement range: ± 180 °
tilt accuracy: <0.1 °
standard rs232 / rs485 / ttl output interface
wide temperature range: -40 ℃ ～ 85 ℃
with hard magnetic, soft magnetic and tilt compensation
product description
scope of application
parameter

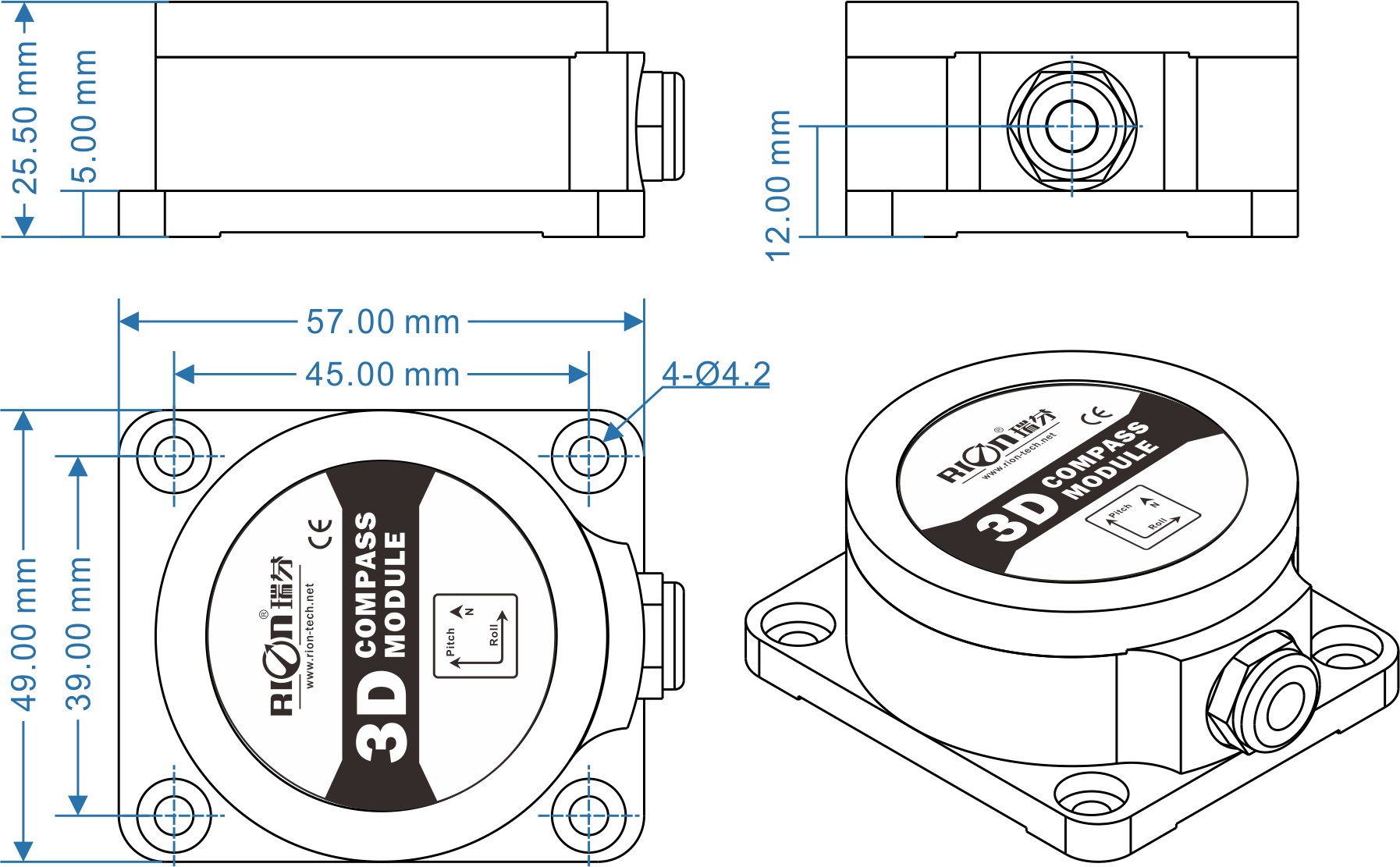

dimensions

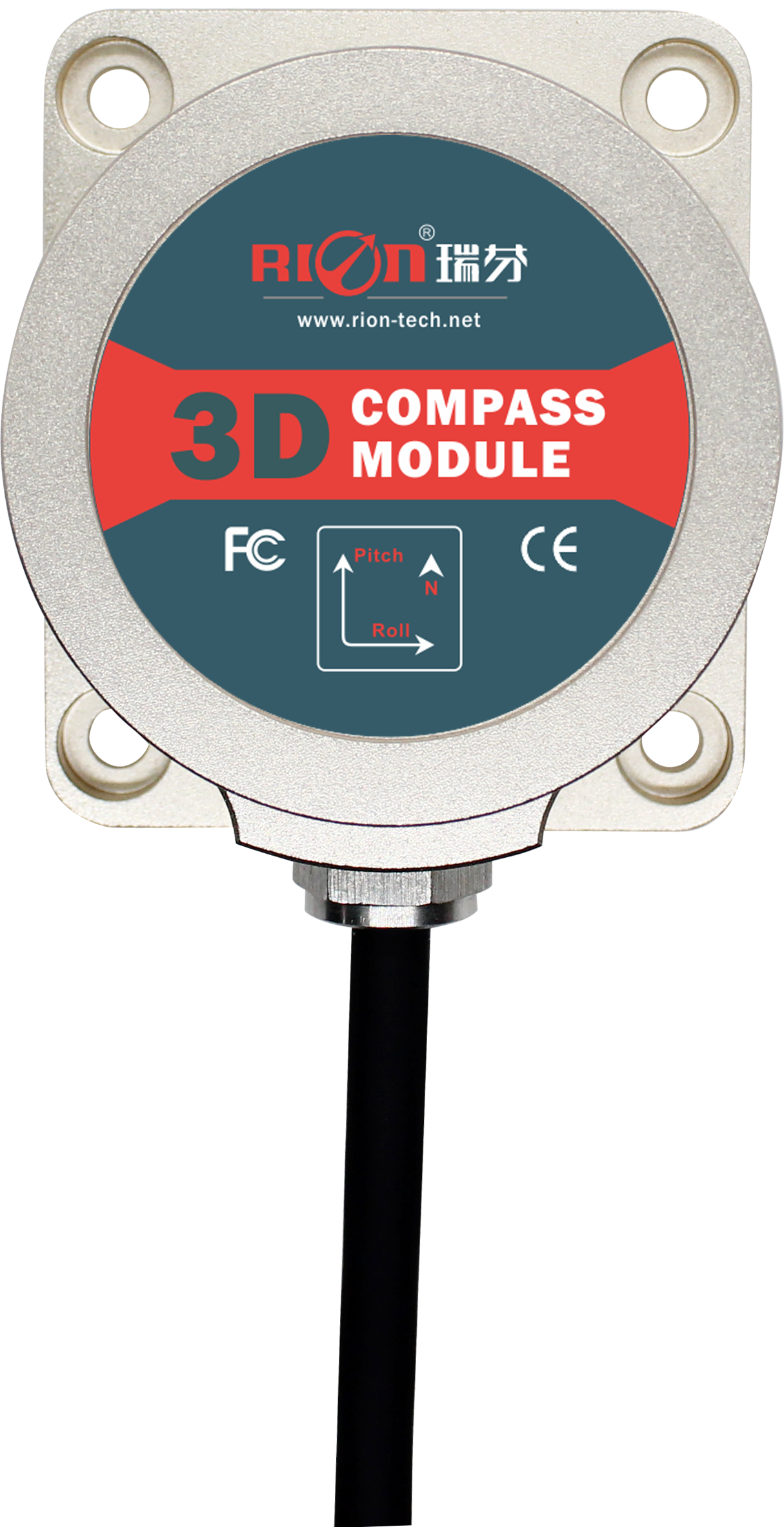

downloadhcm385b is a high-precision 3d compass sensor, and the protection reaches ip67 level. using advanced hard and soft iron calibration algorithms, make any tool surface with a roll angle of 360 ° can still provide high-precision heading information. with the characteristics of small size and low power consumption, it is more suitable for today's miniaturized sensitive measurement systems. the product can be ordered with a complete sealed casing or a circuit board.hcm385b integrates three-axis magnetic flux gate technology. it uses a central processing unit to calculate heading data in real time, and uses a three-axis accelerometer to compensate for a wide range of tilt angles. it is a high-performance, high-stability military-grade product. hcm380b / hcm385b has been widely used in many fields such as stable antennas, vehicles, and system integration.
| hcm385b parameters | ||
| compass heading | best heading accuracy | 0.5° tilt <10° |
| 2.0° tilt＜60° | ||
| 3.0° tilt＜80° | ||
| resolution | 0.1° | |
| compass tilt angle | pitch accuracy | 0.1°<15°（measure range） |
| 0.1°<30°（measure range） | ||
| 0.1°<60°（measure range） | ||
| 0.2°<90°（measure range） | ||
| pitch measure range | ±85° | |
| roll accuracy | 0.1°<15°（measure range） | |
| 0.1°<30°（measure range） | ||
| 0.1°<60°（measure range） | ||
| 0.2°<180°（measure range） | ||
| roll measure range | ±180° | |
| resolution | 0.1° | |
| calibration | hard iron calibration | yes |
| soft iron calibration | yes | |
| soft magnetic field interference calibrationmethod | horizontal rotation 360 °; vertical rotation (optional) | |
| physical characteristics | dimension | l57×w49×h25.5mm |
| weight | ≤130g(without cable) | |
| rs232/rs485/ttl interface | direct leading cable | |
| interface characteristics | start delay | <50ms |
| max output | 20hz/s | |
| communication rate | 2400 ~115200baud | |
| output format | binary high performance protocol | |
| power supply | power voltage | （default）dc 5v |
| current (max) | 30ma | |
| idea mode | 26ma | |
| sleep mode | tbd | |
| environment | working temperature | -40℃～ 85℃ |
| storage temperature | -40℃～ 85℃ | |
| anti vibration performance | 100g | |
|
| protective performance | ip67 |
| electromagnetic compatibility | according to en61000 and gbt17626 | |
| mtbf | ≥40000 hours/time | |
| insulation resistance | ≥100 mega ohm | |
| impact resistance | 100g@11ms、3 axial direction (half sinusoid) | |
| anti vibration | 10grms、10～1000hz | |
l57×w49×h25.5mm
l45×39×5mm
4 m4 screws
