full-system multi-frequency high-precision rtk board, which can be used as a mobile station or base station
support bds b1/b2 gpsl1/l2 glonass l1/l2 galileo e1/e5b
46x71mm compact board, interface compatible with mainstream boards, weight 21g
positioning and simultaneous output, data output rate above 20hz
rtk re-capture speed within 1s, support hot start
when used as a mobile station, the differential input rtcm format is adaptively recognized without specifying a differential data input type. supporting network functions, supporting chihiro sdk.

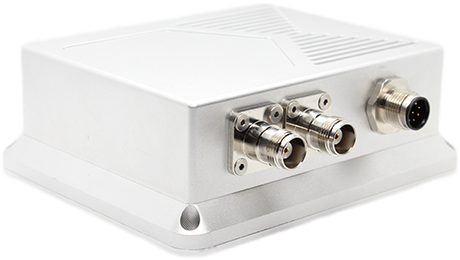

product description
scope of application
parameter
dimensions
download
| system accuracy | directional accuracy | 0.2° (1σ, satellite signal is good, baseline length ≥1m) |
| frequency point | bds b1/b2；gps l1/l2 ；glonass l1/l2；galileo e1/e5b* | |
| single point positioning accuracy (rms) | single point plane: 1.5m (good satellite signal) | |
| single point elevation: 3m (good satellite signal) | ||
| dgps accuracy (rms) | single point plane: 0.4m (good satellite signal) | |
| single point elevation: 0.8m (good satellite signal) | ||
|
rtk positioning accuracy (rms) | single point plane: 1cm 1ppm (good satellite signal) | |
| single point elevation: 1.5cm 1ppm (good satellite signal) | ||
| vertical: ± (20 1 × 10 - 6 × d) mm | ||
| timing accuracy | gps 20ns | |
| bds 20ns | ||
| gps bds 15ns | ||
| speed measurement accuracy | 0.03m/s(95%) | |
| acceleration | 4g | |
| overload | 15g | |
| rtk initialization | rtk initialization time | <5s (baseline length <20km) initialization reliability: > 99.9% |
| e-rtk initialization (baseline length <100km) | rtk initialization time: <1s | |
| (baseline length <100km) | initialization reliability: > 99.9% | |
| signal track | cold start | <40s |
| warm start | <25s | |
| hot start | <10s | |
| signal recapture | <1s | |
| interface characteristics | interface mode | ttl/rs232 |
| baud rate | 115200bps (default） | |
| electrical parameters | supply voltage | 12vdc rated（11~36vdc） |
| rated power | ≤3w | |
| environmental parameters | operating temperature | -40℃～ 75℃ |
| storage temperature | -45℃~ 85℃ | |
| humidity | 95% no condensation | |
| physical characteristics | physical size | 110mm×65mm×40mm |
| weight | ≤200g (without antenna and cable) | |
| i/o interface | 5-pinaviation plug | |
| data update rate | raw data update rate | 20hzoptional |
| height | unlimited | |
| speed | unlimited | |
| protocol format | nmea-0813;unicore* | |

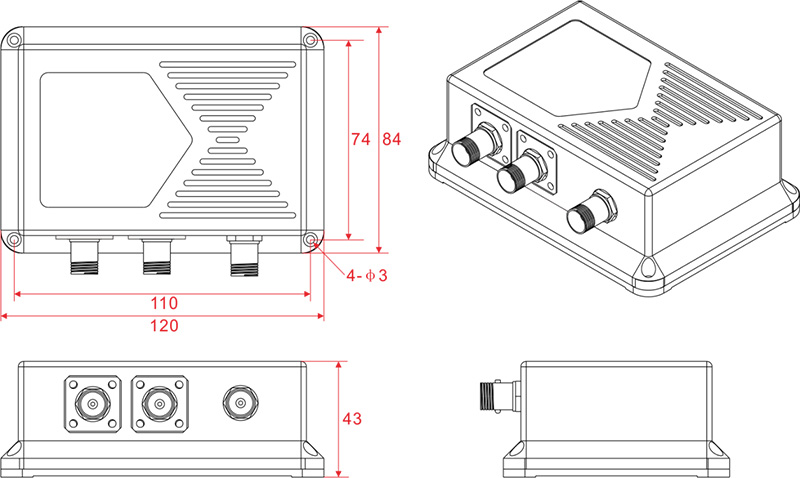

l120×w84×h43mm
l110×74mm
4 m3 screws
* please contact the online sales engineer to obtain the product specification of rion, or email sales@rion-tech.net to obtain it.
