home photovoltaic tilt sensor photovoltaic tilt sensor

rion wca300m

single axis pv tilt module

resolution 0.1°

large range

output method ttl

operating voltage dc3.3~7v

wide temperature work-40～ 85℃

good performance at all temperatures

product description

wca300m single-axis inclination module is a new low-cost inclination module independently developed by rion technology. it adopts the latest anti-jamming platform design and integrates a new micro-mechanical sensing unit. it has wide temperature working performance, superior anti-vibration performance, stable and reliable long-term work, and effective work. the life span is up to 10 years. each module goes through the factory's strict calibration procedure, which effectively eliminates the zero-bias error. cross axial error, linearity error. using tape packaging, it can be directly used for automatic placement with smt placement machine, which is more efficient and lower-cost.

scope of application

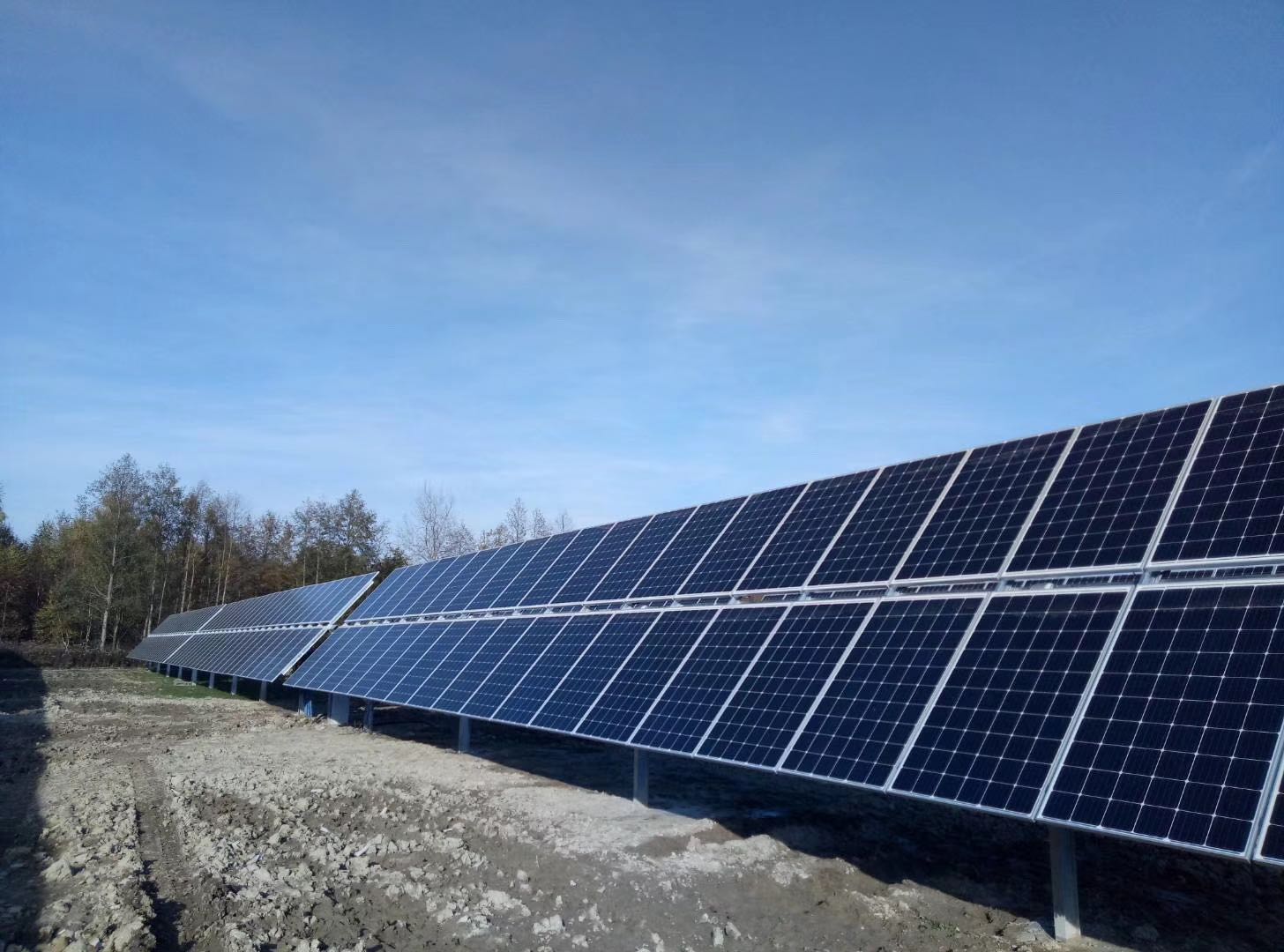

solar pv tracking control

bridge monitoring

track monitoring

parameters

wca300m	conditions	parameters	unit
measure range	single axis	0~360	°
resolution		0.1	°
measureaccuracy	25℃	±0.2	°
temp. drift characteristics	-40~85℃	±0.02	°/℃
response time	no filtering	0.1	s
zero deviation		±0.1	°
static operating current	dc5v	10	ma
power on time		1	s
operating voltage	20hz
operating temp.	according to en61000 and gbt17626
output interface	≥50000 hours/times
output load	≥100mω
operating hours	100g@11ms、3 axial direction (half sinusoid)
anti-vibration	10grms、10~1000hz
impact resistance	ip67
weight	30g

dimensions

size description

shell size

l24.5×w19×h4mm

specifications and software

* please contact the online sales engineer to obtain the product specification of rion, or email sales@rion-tech.net to obtain it.
