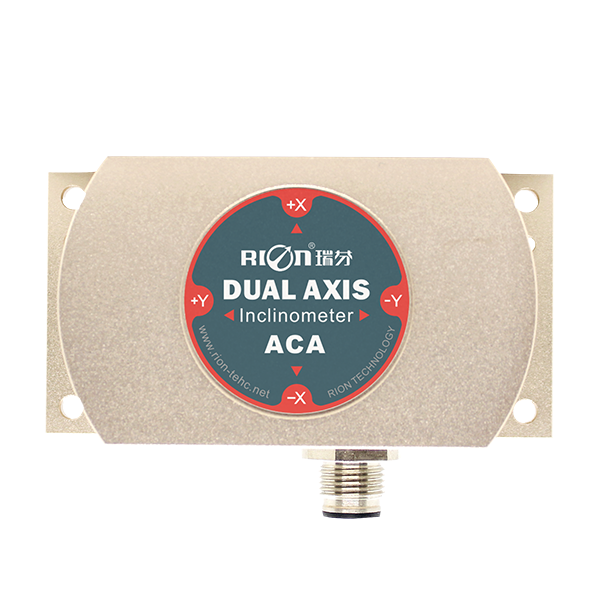

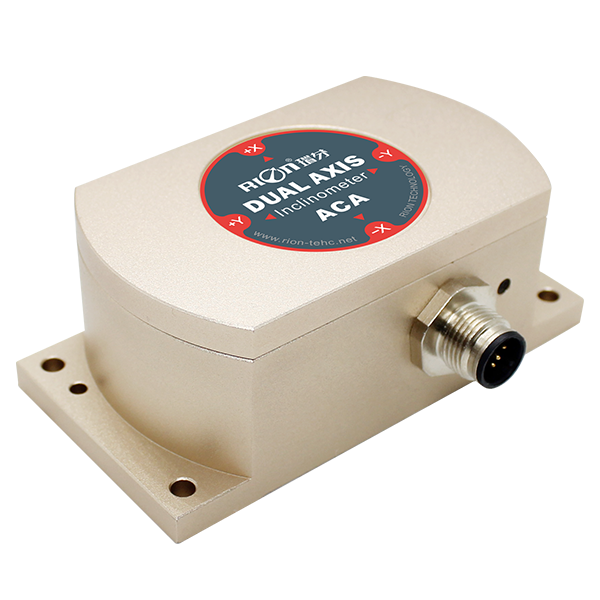

product description

aca616t is a full temperature compensation high precision single axis modbus digital output type tilt sensor developed by rion technology on the basis of high precision tilt platform. its excellent temperature stability can be used in a wide temperature environment of -40~85 ℃ it maintains high measurement accuracy and is more suitable for long-term field equipment monitoring and leveling. in addition, the system has a built-in high-precision 24it a/d differential converter, and through the fifth-order filtering algorithm, it can measure the tilt and pitch angle of the sensor output relative to the horizontal. output interface rs485, rs232, ttl optional. the characteristics of non-contact installation make the product have strong system integration, only need to fix the sensor on the surface of the measured object with screws, the attitude and inclination of the object can be automatically calculated, simple to use, no need to retrieve the relative changes installed on both sides. it has strong resistance to external electromagnetic interference and strong ability to withstand shock and vibration. it has a great competitive advantage among domestic counterparts, and is specifically used in the industrial fields required by high-end users.

scope of application

engineering vehicle leveling

bridge and dam monitoring

laser equipment positioning

medical device angle control

underground drilling rig attitude navigation

railway gauge ruler, gauge gauge

precision machine level control

geological equipment tilt monitoring

technical data

aca616t	conditions	parameters				unit
measure range		±10	±30	±60	±90	°
measure axis		x/xy	x/xy	x/xy	x/xy	axis
resolution		0.001	0.001	0.001	0.001	°
measure accuracy		0.003	0.01	0.02	0.03	°
long term stability		0.01	0.02	0.03	0.04	°
zero temp.coefficient	-40~ 85℃	±0.0004	±0.0004	±0.0004	±0.0004	°/℃
sensitivity temp-coeffi	-40~ 85℃	≤50	≤50	≤50	≤100	ppm/℃
power on time		0.5	0.5	0.5	0.5	s
response frequency		20	20	20	20	hz
output rate	5hz、15hz、35hz、50hz can be setting
output signal	rs232/rs485/rs422/ttl
communication protocol	refine 68 protocol / modbus protocol
emc	according to en61000 and gbt17626
mtbf	≥50000 hours/times
insulation resistance	≥100mω
shockproof	100g@11ms、3 axial direction (half sinusoid)
anti-vibration	10grms、10～1000hz
protection grade	ip67

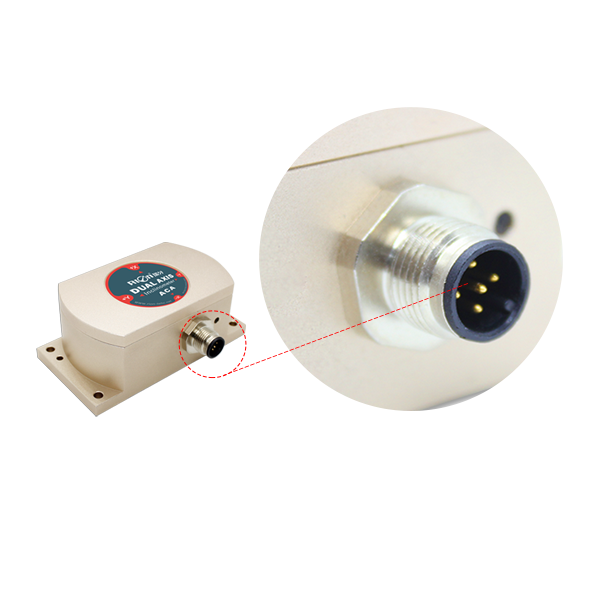

cables	standard configuration: 2m length, wear-resistant, wide temperature, shielded cable 5p * 5.7mm aviation connector
weight	235g(without cable)

electronic characteristics

parameters	conditions	min	standard	max	unit
power supply	standard	9	12、24	36	v
power supply	customized		other voltage		v
working current	12v		40		ma
working current	24v		22		ma
working temperature		-40		85	℃
store temperature		-40		85	℃

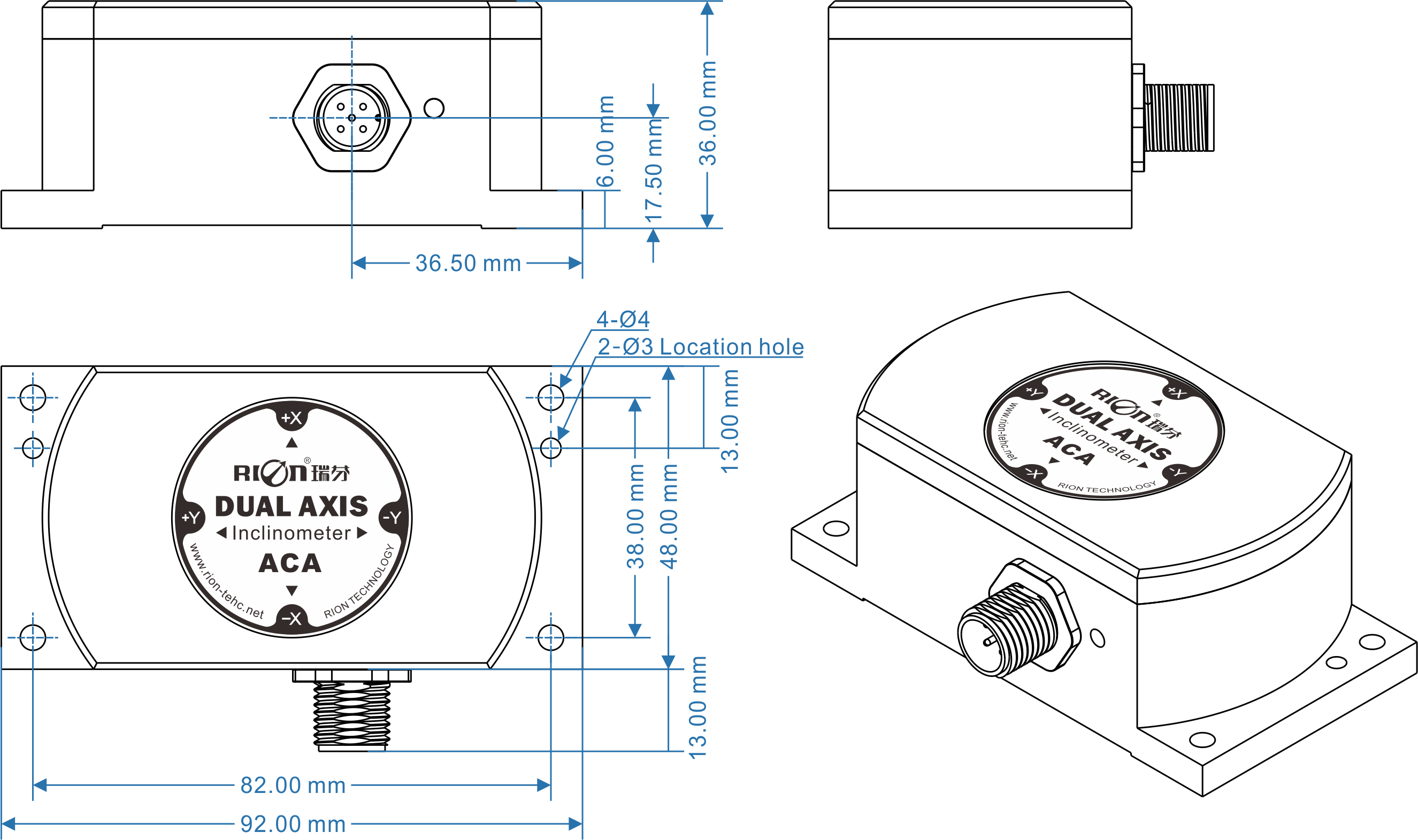

dimensions

size description

shell size

l92×w48×h36mm

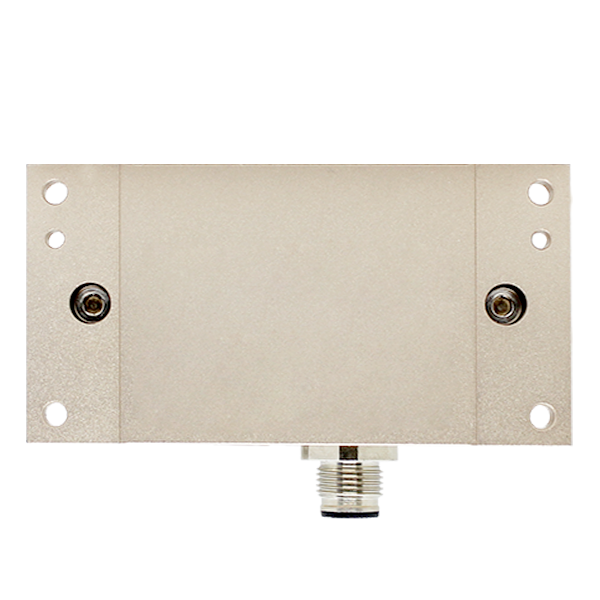

installation size

l82×w38×h6mm
ounting screws

4 m4 screws/2 m3 positioning pins

specifications and software

* please contact the online sales engineer to obtain the product specification of rion, or email sales@rion-tech.net to obtain it.
